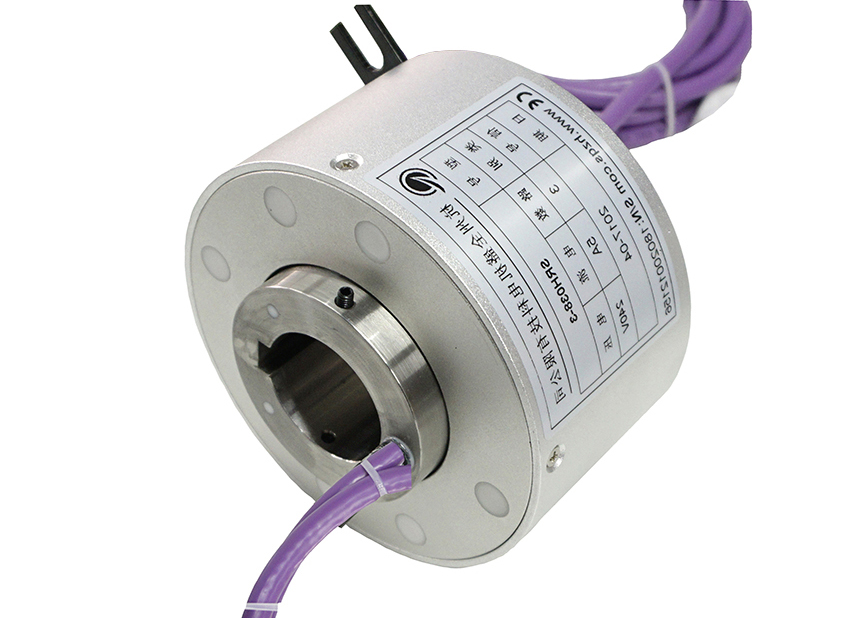

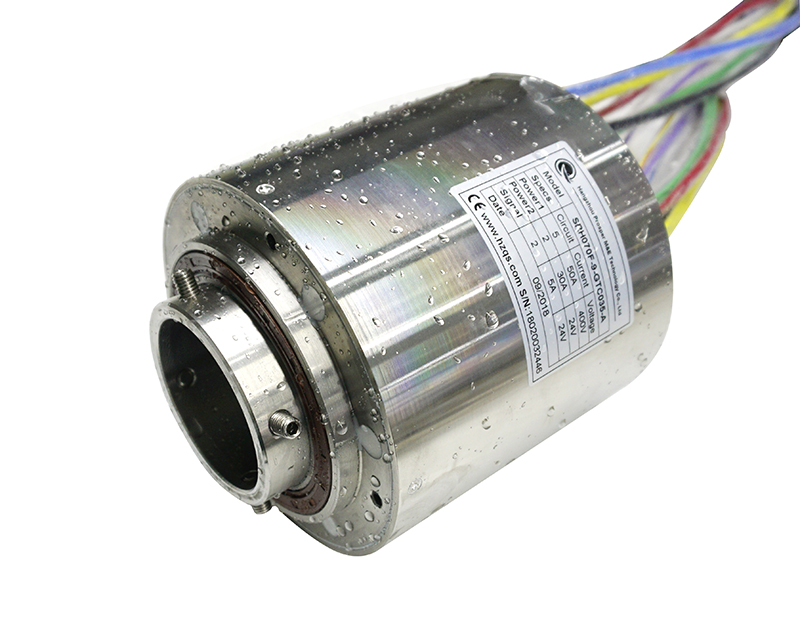

The water proof IP65 slip ring designed the whole structure by AL or SS material. the O ring sealed on stator side between the flange and cover . we aso use speical silicon rubber seasl on rotor side. this is very important to againt water leakage into inside of slip ring to get short or lower insulation


Brush and ring contact material silver to silver .

Standard temperature is -40°C to +80°C.

Dielectric strength 500V AC@50HZ 60S.

Insulation resistant 500MΩ 500VDC.

Life span  to 80 million revolutions.

Protection grade  IP65、IP68.

Ethernet circuits can transmission 100Mbps, 1Giga data.

Through bore size 3mm to 1000mm.

Circuit number from 2-350.

Operation speed: standard up to 250rpm.

Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 1000A.

Standard housing is ABS material up to bore size60mm , AL housing offered the bore size bigger than 70mm.

Telfon wire which can bear high temperature.
